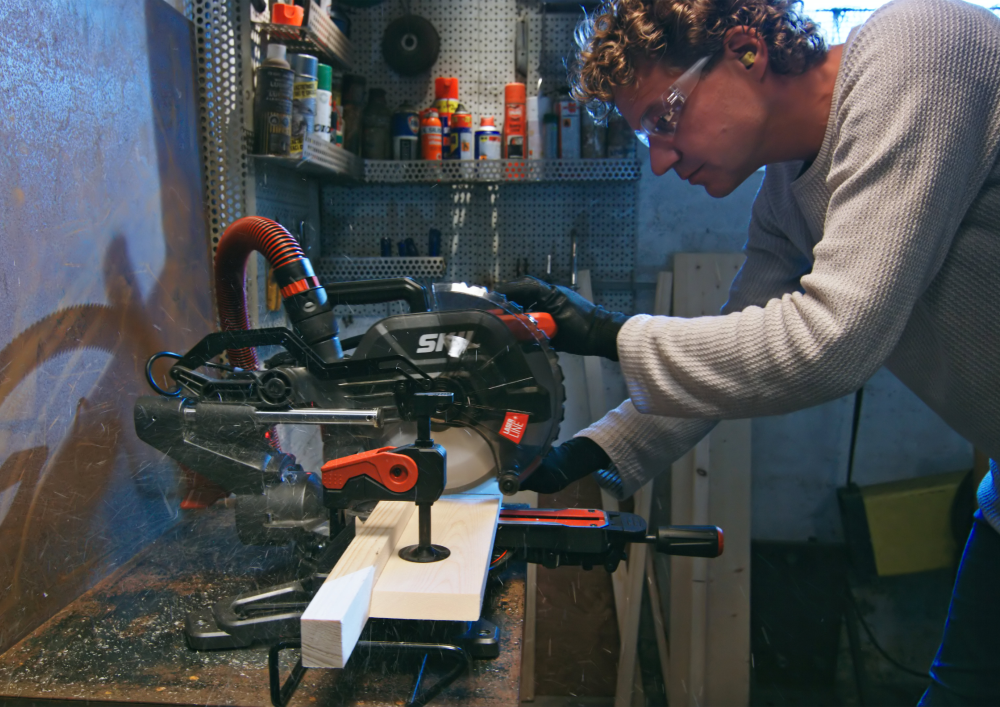

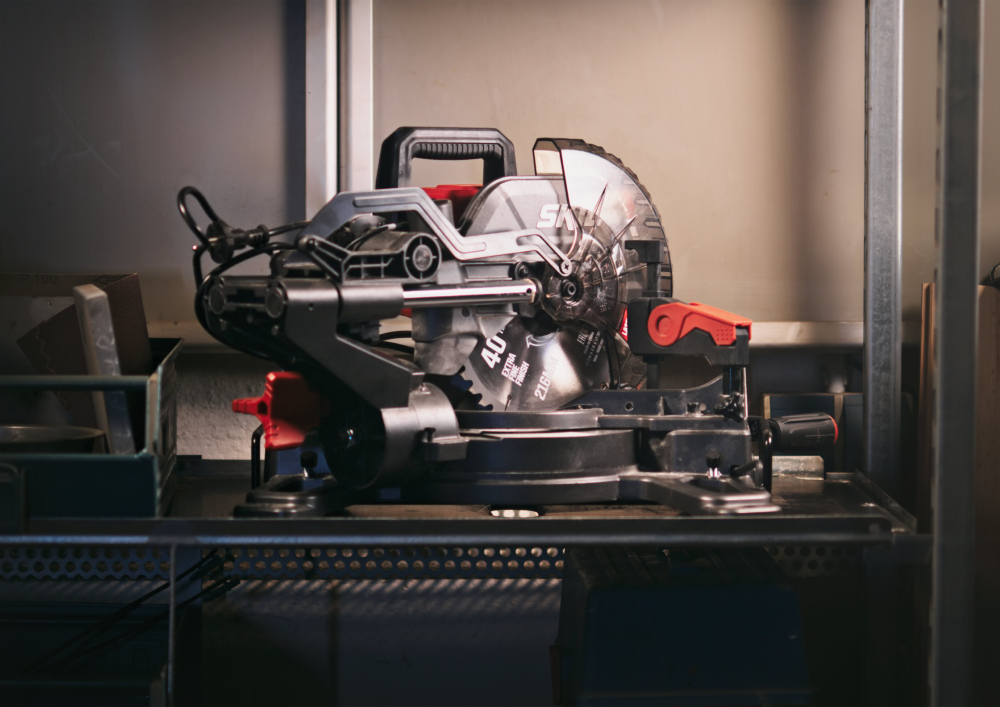

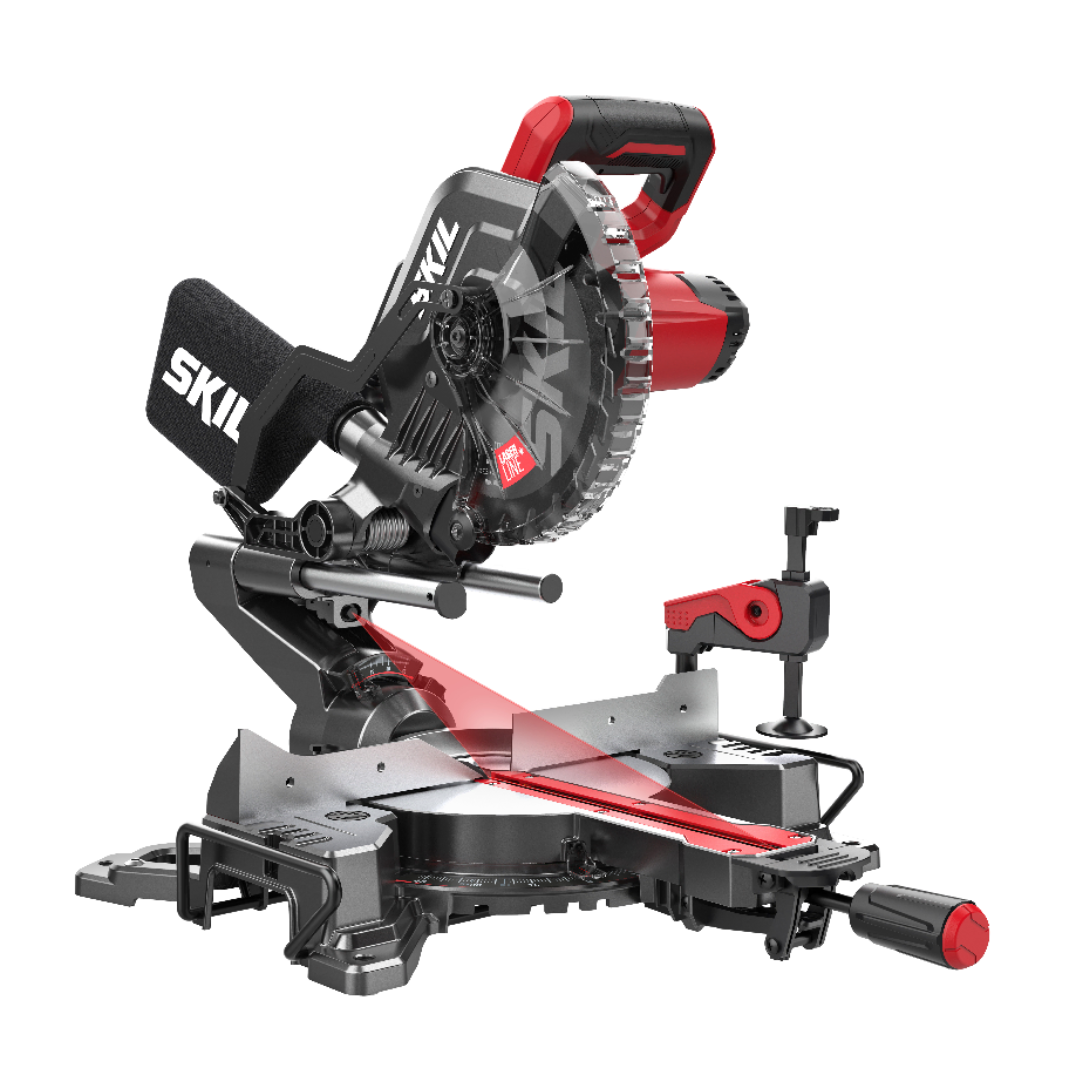

SKIL SLIDING MITRE SAW - 1310 AA
SKIL SLIDING MITRE SAW - 1310 AA
Out of stock
Couldn't load pickup availability
- Powerful 1600W motor for tough sawing jobs
- Overslide system prevents that the bars extend to the rear when cutting, allowing the saw to be placed close to the wall
- Quick clamp system, for convenient and fast workpiece fixation

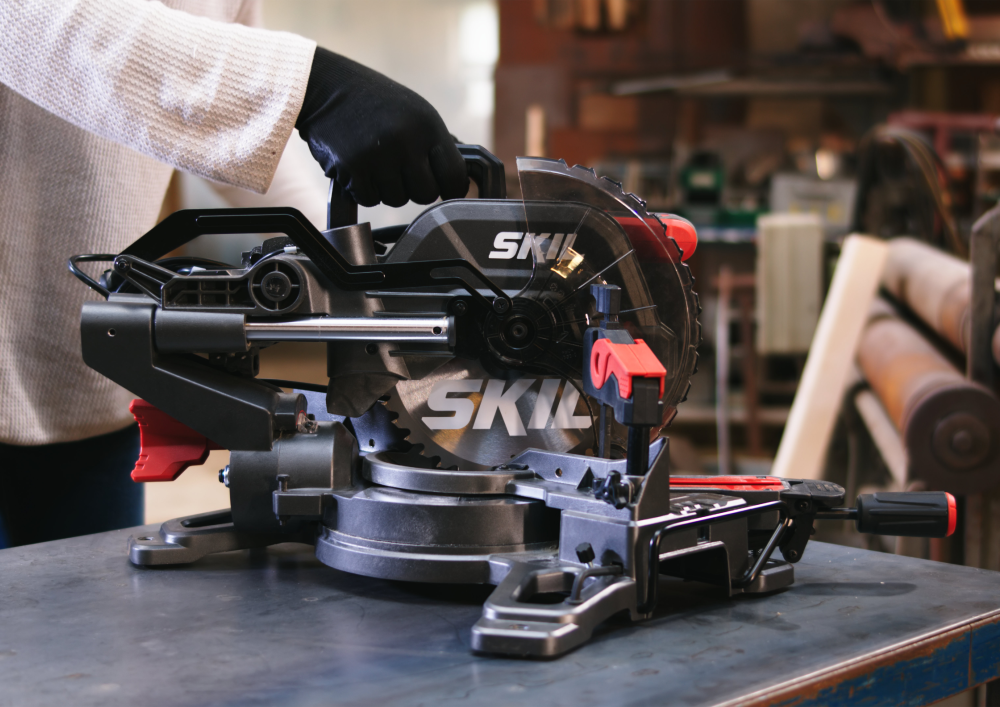

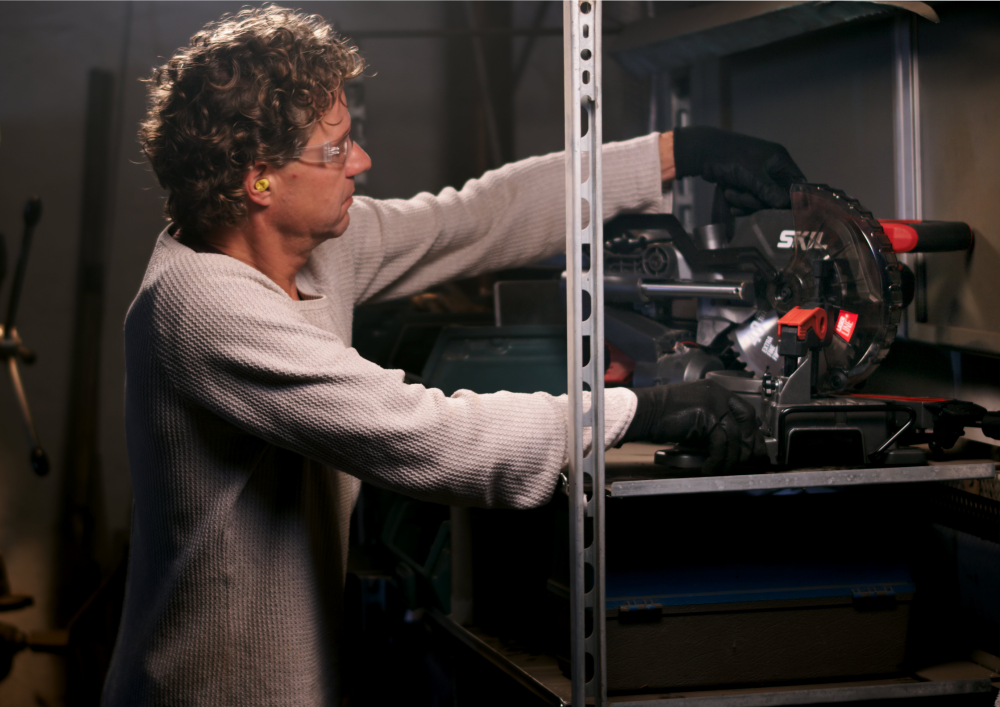

- Easy transportation thanks to its carrying handle, compactness and light weight
- Accurate laser cutting-line indicator, with easy fine adjustment
- Sliding system enables a large cutting capacity
- Steplessly adjustable mitre cut angles and positive stops left + right (0°, 15°, 22,5°, 31,6°, 45°)
- Adjustable table extensions for long workpieces

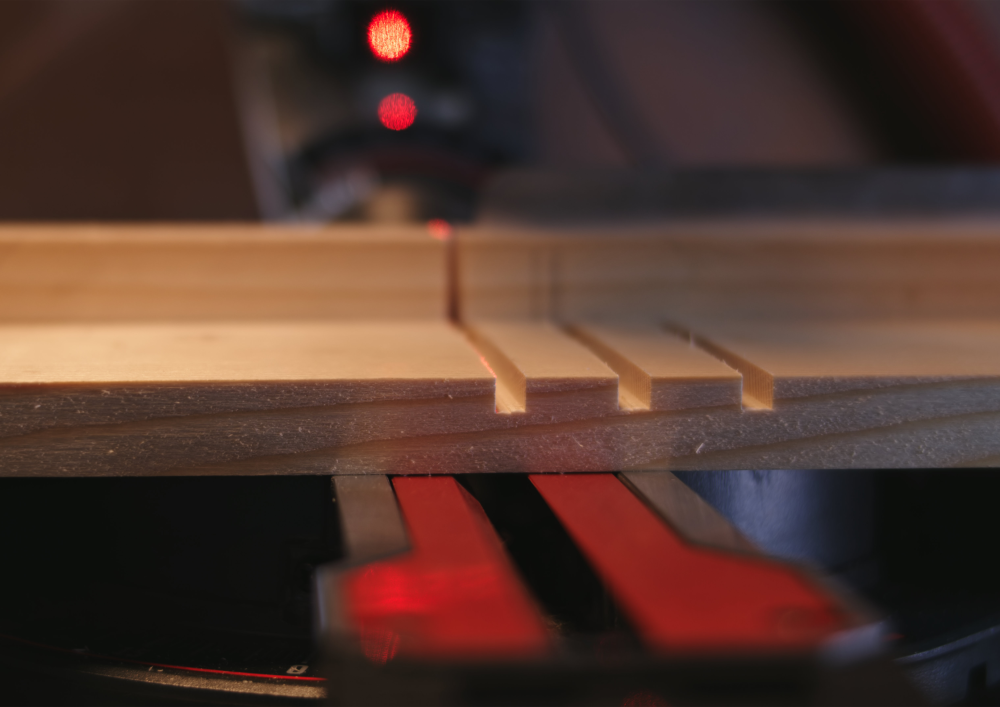

- Groove cutting function
- Durable construction with ball-bearings, helical gears and aluminium saw table
- Integrated vacuum cleaner connection
- Comfortable handle and front controls
- Spindle lock enables easy blade changing

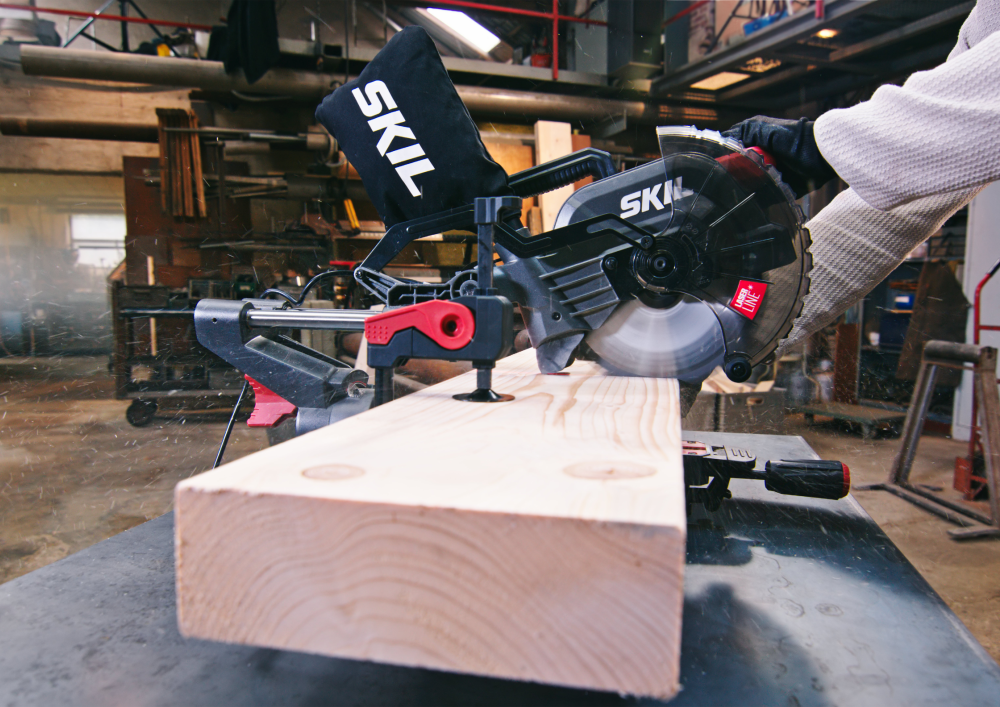

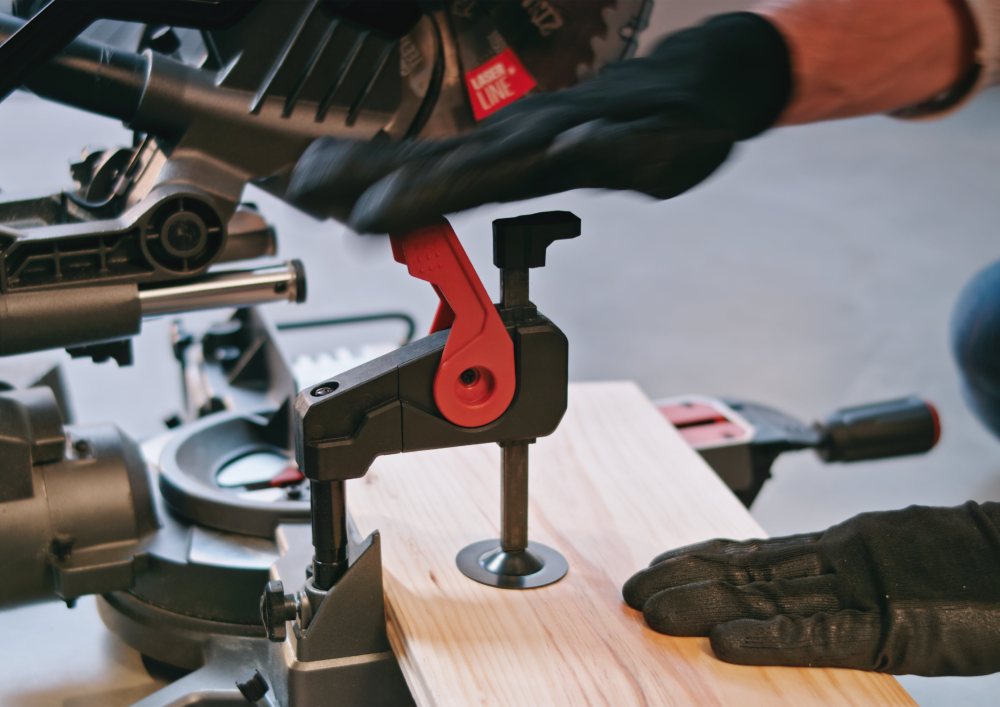

QUICK CLAMP
The time-consuming task of securing a workpiece becomes a matter of seconds, thanks to the SKIL quick clamp. The clamp maintains control while you operate the saw.

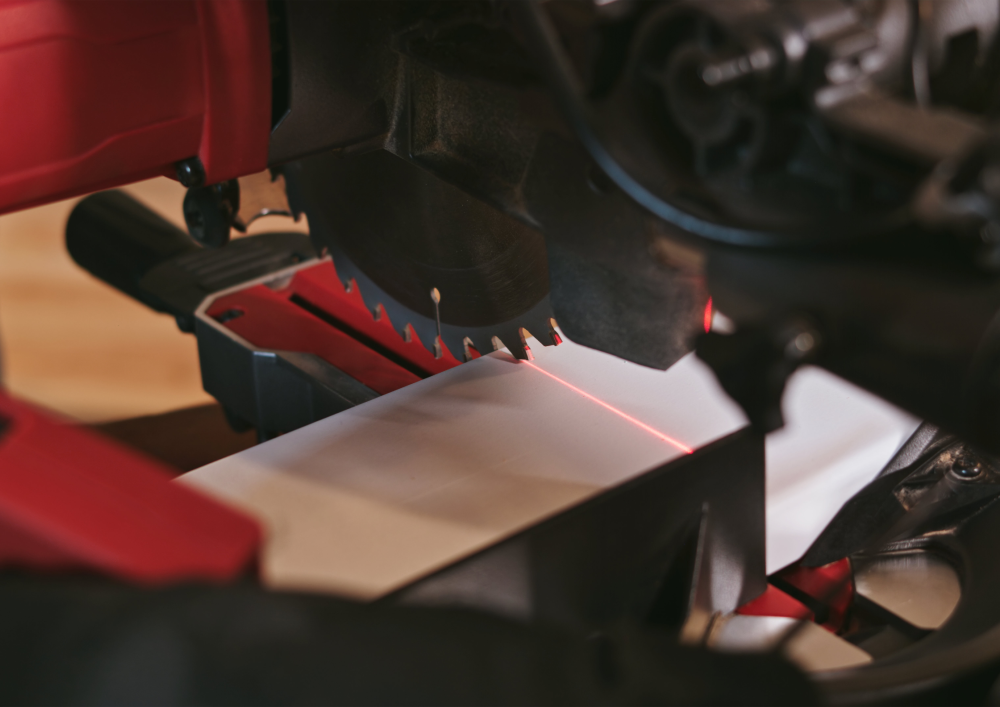

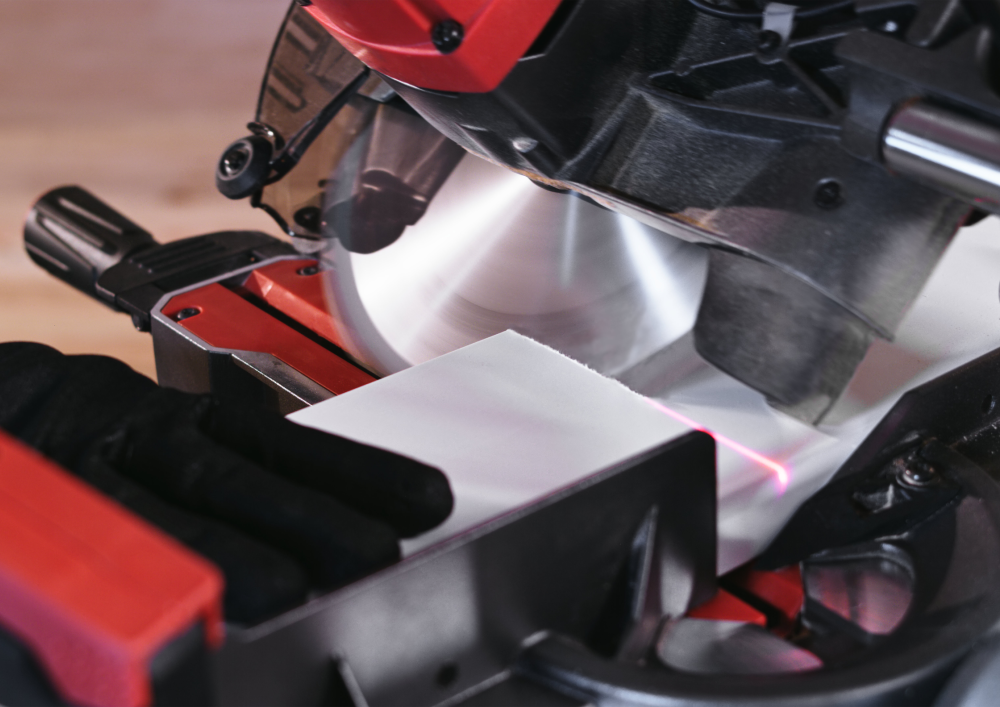

Adjustable laser
Compensating for the thickness of the saw blade, the SKIL adjustable laser provides precise alignment options, improving the quality of your projects.

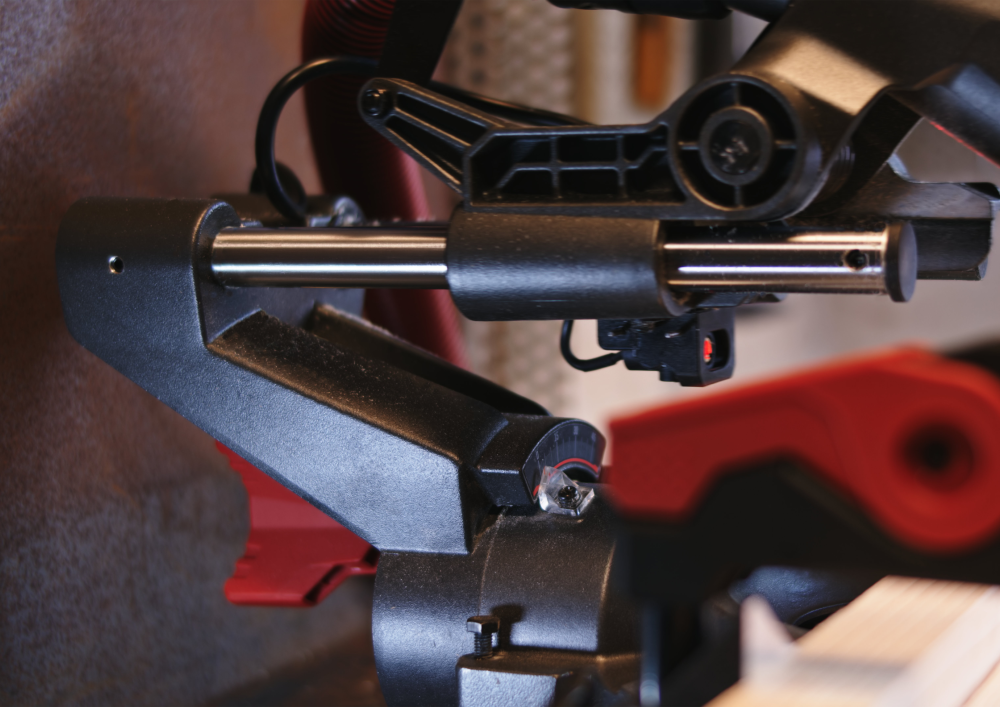

Overslide system
The saw heads of the most compact SKIL sliding mitre saw models slide over the bars, allowing you to work close to walls without the bars extending to the rear.
Product Description
Very compact yet powerful 216mm mitre saw, packed with smart features

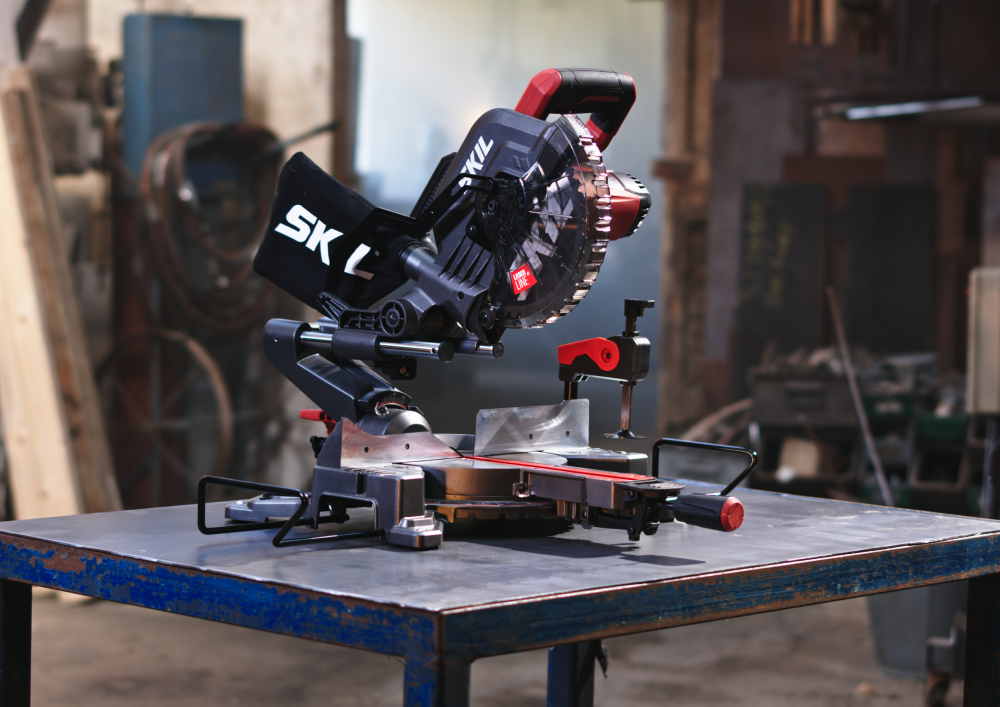

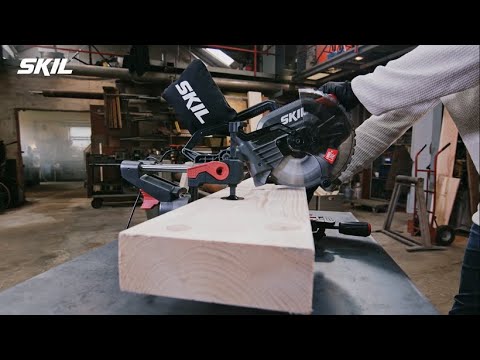

The SKIL 1310 sliding mitre saw is extremely compact and lightweight. But don’t be deceived by its size. Its powerful 1600W motor and smart overslide function mean it can handle demanding sawing tasks. The SKIL 1310 is suited to all common sawing tasks and even cuts beams with a thickness up to 70mm. And this SKIL mitre saw is packed with handy features that make sawing easier than ever.
Compact overslide system

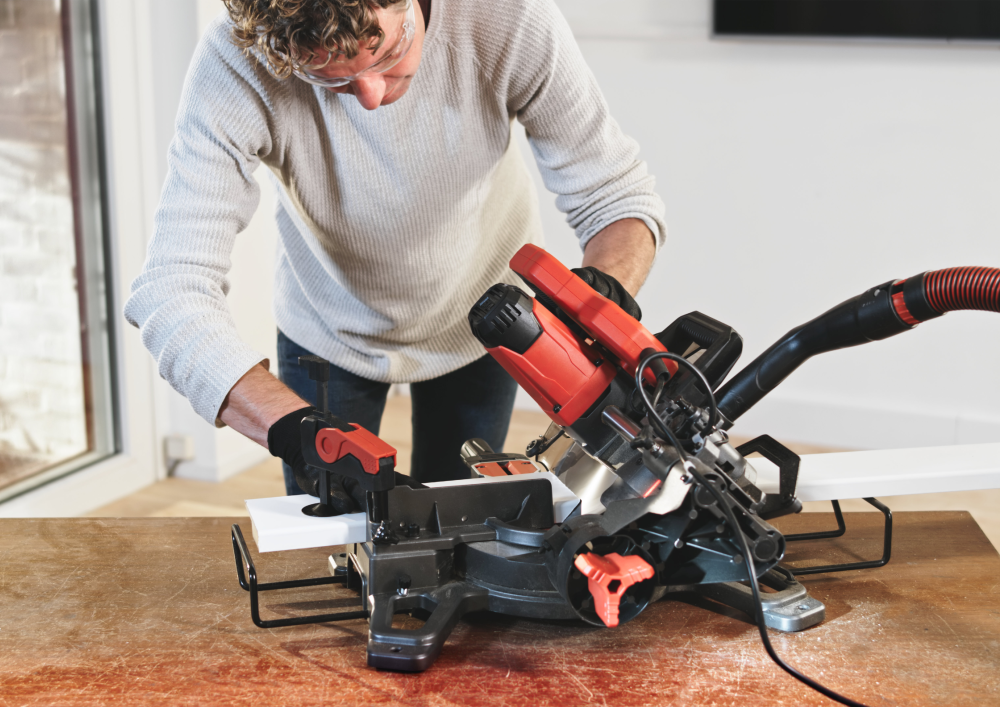

In most mitre saws, the saw head is attached to the bars, which extend to the backend of the product when sawing. The SKIL 1310, on the other hand, has fixed bars and a sliding saw head, which means the saw can be placed close to a wall. Another big space saver that comes in handy again and again. The table extensions for longer workpieces are fully inclinable and there’s even an extra handle for easy carrying.
Unique quick clamp system

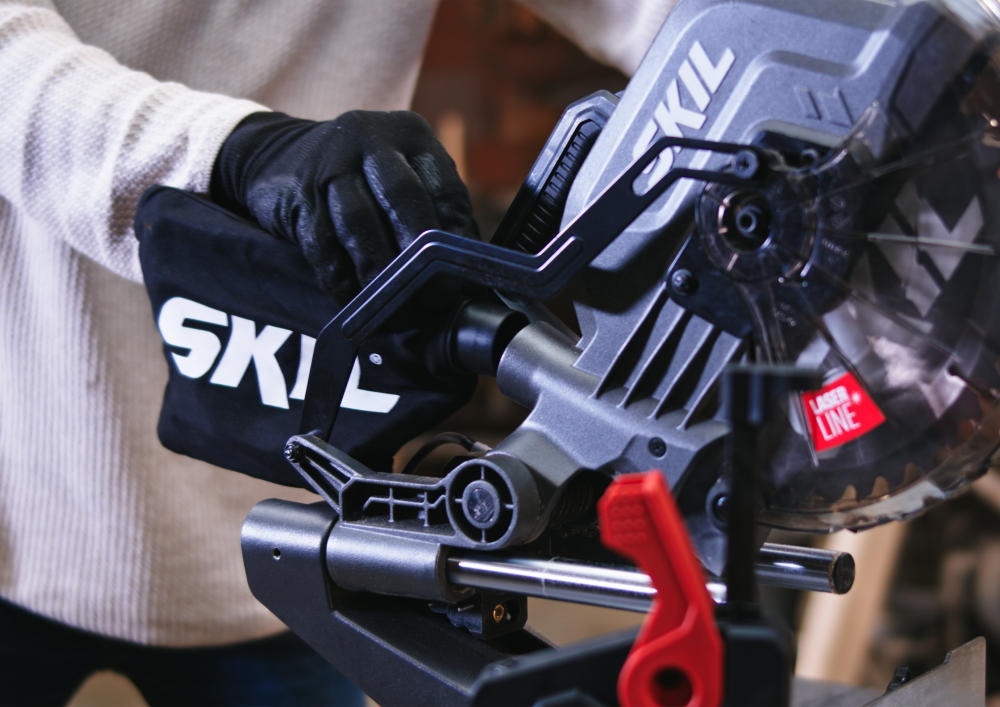

Attaching a workpiece is a cinch with the unique quick clamp system, which is much faster than conventional clamping systems. Saw angles are steplessly adjustable for precise bevel and mitre cuts and pre-defined stops ensure effortless adjustment to the most used angles. The 1310 also comes with large capacity dust bag and integrated vacuum cleaner connection in the aluminium guard.
Accurate laser with easy adjustment
The SKIL 1310 includes a mains powered laser that clearly indicates the line of cut. It’s easy to adjust, a huge plus that ensures optimal accuracy and flexibility to set the laser line to the left or to the right side of the blade. Model 1310 AA comes with a 40-tooth carbide-tipped 216 mm sawblade, extra fine for excellent results.
Specifications
| Performance Level | HIGH PERFORMANCE |
|---|---|
| Blade Arbor Hole Diameter | 30 mm |
| Blade Diameter | 216 mm |
| Cutting Capacity at 0° Miter / 0° Bevel | 220 x 70 mm |
| Cutting Capacity at 45° right & left Miter /0° Bevel | 155 x 70 mm |
| Cutting Capacity at 0° Miter / 45° Right Bevel | 220 x 40 mm |
| EAN | 8719643005304 |
| Warranty | 3 year warranty for domestic use. |
| Max. Bevel Angle (°) | 45 (Л) ° |
| Max. Miter Angle (°) | 47 (S), 47 (L) ° |
| Power | 1600 W |
| Power source | Mains, corded |
| Voltage (V) | 220-240 V |
| Frequency | 50-60 hz |
Packaging contains
- SKIL 1310 sliding mitre saw
- Table extensions
- Workpiece clamp
- 216 mm 40T carbide tipped blade
- Dustbag
- Hex key
- Instruction manual
