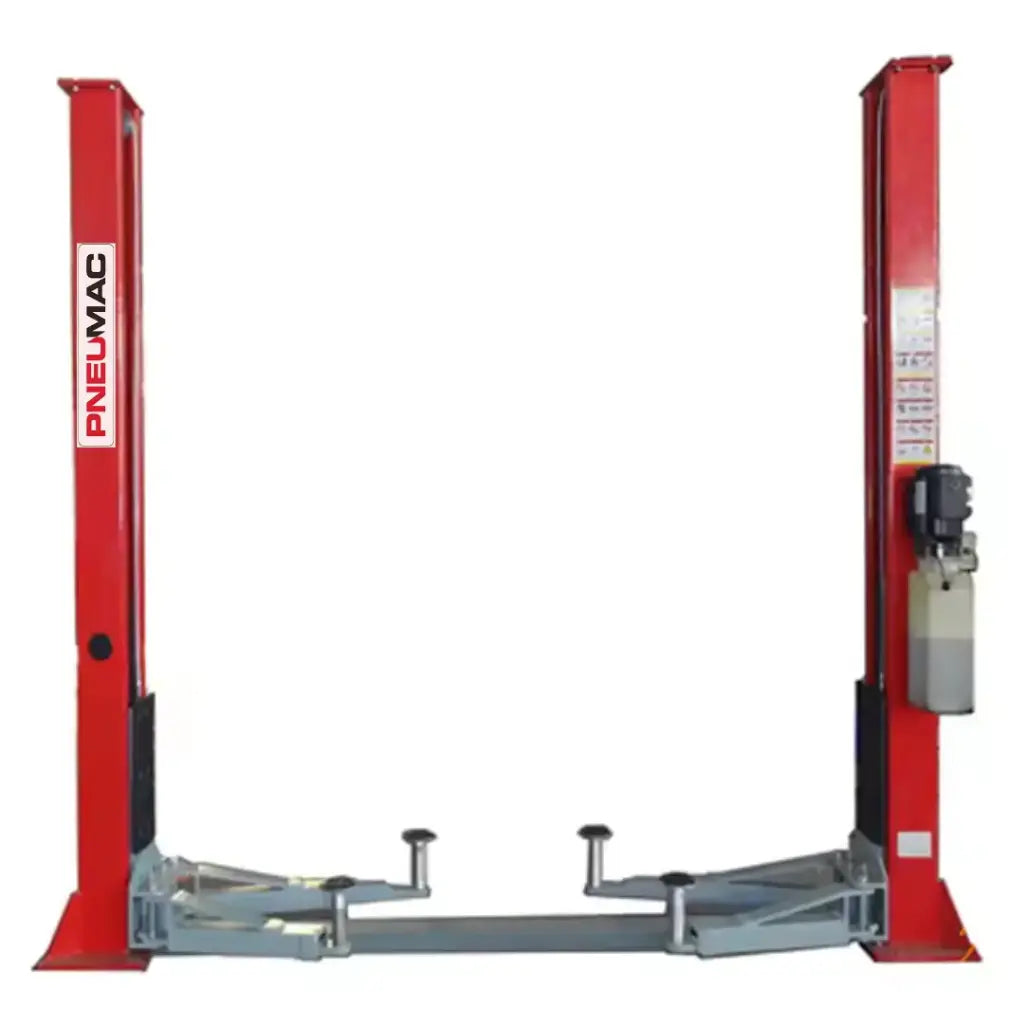

PNEUMAC HYDR BASE TYPE 2 POST LIFT 4T 220V
PNEUMAC HYDR BASE TYPE 2 POST LIFT 4T 220V
Regular price
N$41,999.00 NAD
Regular price
N$45,200.00 NAD
Sale price
N$41,999.00 NAD
Unit price
/
per
Tax included.
Low stock: 2 left
Couldn't load pickup availability
Description
Equalization of two steel cables forcing both sliding blocks to move synchronously, effectively and to prevent the vehicle from tilting.
• Electro-hydraulic with (2) two independent cylinders
• Cable mode synchronization system from the bottom
• Symmetrical three stages arms
TECHNICAL DATA
Capacity 4000kg
Internal distance between columns 2800mm
Maximum lifting height 1900mm
Minimum pad height 98mm
Power supply 230V 1 ph
Lifting time 50 seconds
Motor power 2,6 kW
Weight (approx) 850kg
Lift Height 3870mm
